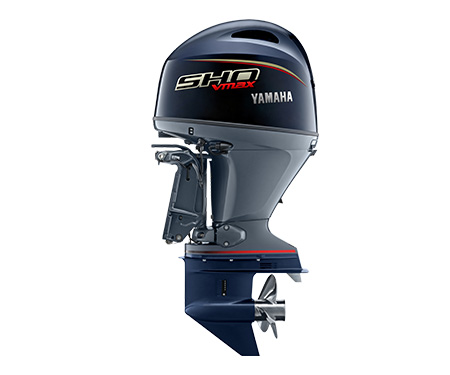

VF90
The Best In Smooth Performance
The all-new Yamaha 90-horsepower In-Line Four V MAX SHO® may be the smallest in the V MAX SHO® line, but it packs the biggest punch of any 90-horse on the water.
Its SOHC four-valve-per-cylinder design minimises weight while optimizing combustion. In fact, its lightweight design combined with 1.8L displacement makes the VMAX SHO 90 the class leader in torque and top speed. A reconfigured gear ratio also gives the VMAX SHO 90 greater holeshot and improved top-end speed over it's F90 sibling. The all-new Yamaha VMAX SHO 90, the latest addition to the VMAX family.
Own It Sooner
We understand what it means to be customer friendly. Yamaha has been supplying innovative and exciting leisure products for nearly 50 years. We want to ensure that you get to enjoy our lifestyle products even sooner.
Technical Specification
| Engine Type | 4-Stroke, 16 Valve SOHC In-line 4 Cylinder |
| Bore x Stroke (mm) | 81 X 88.9 |
| Fuel Tank Capacity (l) | |
| Displacement (cc) | 1832.0 |
| Recommended Maximum RPM | 5000 - 6000 |
| Fuel Management | EFI |
| Ignition | TCI |
| OEDA Emission Rating | 3 |
| Lubrication System | Wet sump |
| Alternator Output | 12V - 35A with Rectifier Regulator |
| Gear Ratio | 2:33:1 |
| Starter System | Electric |
| Operation Method | Mechanical Control (Optional Tiller Handle Available) |
| Trim and Tilt Method | Power Trim & Tilt |
| Digital Gauges | Optional |
| Command Link Gauges | Optional |
| Transom Height (mm [inch]) | L: 516 [20.3] | X: 643 [25.3] |
| Dry Weight (kg) | L: 160 | X: 164 |
