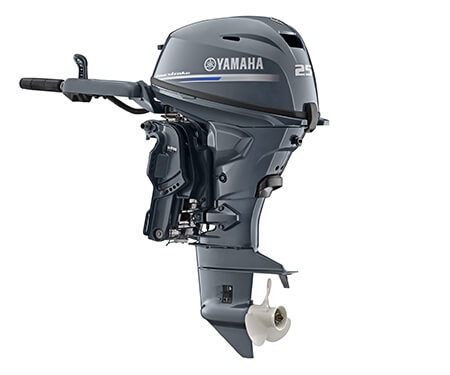

F25
Industry Leading Innovation
The F25 delivers the weight and performance you would expect from a two-stroke, with all of the advantages that comes with Yamaha’s industry-leading four-stroke technologies. This new generation outboard is not only an improvement on the four-stroke model it replaced, but also exceeds the all-round capabilities of Yamaha’s legendry 25 two-stroke outboard.
For the first-time in Yamaha’s four-stroke history, the F25 comes with a battery-less fuel injection option – delivering easier starts, better fuel economy and an improved overall operating performance.
Yamaha’s F25 delivers the industry’s highest power-to-weight ratio and options to suite every boating style. Choose from mechanical and/or electric start, mechanical tilt or power, trim and tilt (PTT), and a redesigned tiller handle or forward control options - now in both short and long shaft models.
With all the features and options normally only seen in Yamaha’s bigger horsepower models, the F25 punches well above its weight.
Technical Specification
Engine Type | 4-Stroke, SOHC In-line 2 |
Bore x Stroke (mm) | 65 x 65.1 |
Fuel Tank Capacity (l) | |
Displacement (cc) | 432.0 |
Recommended Maximum RPM | 5000-6000 |
Fuel Management | EFI |
Ignition | CDI |
OEDA Emission Rating | 3 |
Lubrication System | Wet-sump |
Alternator Output | 12V - 16A with Rectifier Regulator (Battery Charging Kit Optional) |
Gear Ratio | 2.08 : 1 |
Starter System | Manual Starter (M), Manual and Electric Starter (W) |
Operation Method | Tiller Handle (H), Remote Control |
Trim and Tilt Method | Manual Tilt, Power Trim and Tilt (T) |
Digital Gauges | Optional |
Command Link Gauges | Optional |
Transom Height (mm [inch]) | S: 424 [16.7] | L: 551 [21.7] |
Dry Weight (kg) | S (MH): 57 | L(MH): 59 | S(WT): 64 | L (WT): 65 | S(WTH): 66 | L (WTH): 67 |
