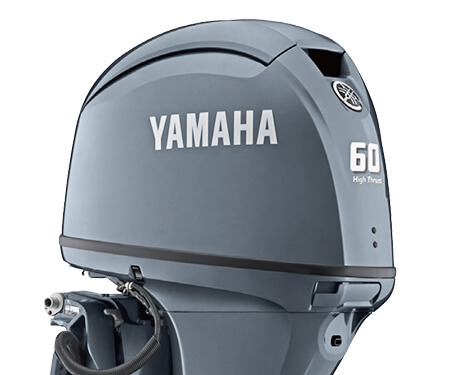

T60
Challenge Accepted
The high-thrust T60 has been specifically designed to provide the extra grunt when you need to move big loads such as sailboats and heavy pontoons.
Utilising a dual-thrust design the T60 produces twice the thrust of comparable two-strokes within the 2,000 to 3,000 RPM range, while delivering Yamaha’s the legendary reliability, durability, and efficiency that Yamaha Outboards are renown for.
The key mechanical difference between the T60 and the standard four-stroke platform is the use of a higher 2.33:1 gear ratio. This allows the T60 to spin a much larger propeller, generating more power to the water and resulting in less slippage.
The T60 can be fitted with Yamaha’s patented Dual Thrust propellers. These propellers provide maximum traction in both forward and reverse, by re-routing the exhaust when in reverse.
Technical Specification
Engine Type | 4-Stroke, SOHC In-line 4 |
Bore x Stroke (mm) | 65 x 75 |
Fuel Tank Capacity (l) | |
Displacement (cc) | 996.0 |
Recommended Maximum RPM | 5000-6000 |
Fuel Management | EFI |
Ignition | TCI |
OEDA Emission Rating | 3 |
Lubrication System | Wet-sump |
Alternator Output | 12V - 16A with Rectifier Regulator |
Gear Ratio | 2.33 : 1 |
Starter System | Electric |
Operation Method | Mechanical control |
Trim and Tilt Method | Power Trim & Tilt |
Digital Gauges | Optional |
Command Link Gauges | Optional |
Transom Height (mm [inch]) | L: 530 [20.9] | X: 644 [25.4] |
Dry Weight (kg) | L: 119 | X: 122 |
