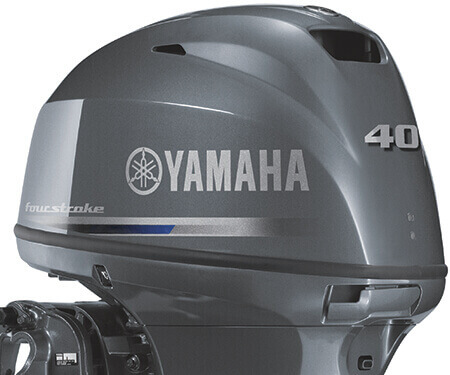

F40

The Power to Impress

Powerful, efficient and reliable, the F40 combines the benefits of Yamaha’s Multi-Point Electronic Fuel Injection (EFI) system, with a Micro-Processor Controlled System to deliver reliable turnkey hot and cold starting, improved fuel economy, incredible mid-range torque, lower emissions, and an overall smoother and quieter operation.

The compact 747cc 3-cylinder, marine engine delivers the optimal balance of power, torque and refinement for exceptional versatility in both forward or tiller handle control applications. The forward control option can be matched with digital gauges, including Yamaha's feature packed Command-Link system. While the optional Multi-Function Tiller Handle comes standard with trim, shift, and throttle controls, as well as ‘start-in-gear’ protection and warning horn alerts, all integrated into the ergonomic handle.

Own It Sooner

We understand what it means to be customer friendly. Yamaha has been supplying innovative and exciting leisure products for nearly 50 years. We want to ensure that you get to enjoy our lifestyle products even sooner.

Technical Specification

Yamaha F40
Engine Type4-Stroke, SOHC In-line 3
Bore x Stroke (mm)65 x 75
Fuel Tank Capacity (l)
Displacement (cc)747.0
Recommended Maximum RPM5500-6000
Fuel ManagementEFI
IgnitionDC-CDI
OEDA Emission Rating3
Lubrication SystemWet-sump
Alternator Output12V - 17A with Rectifier Regulator
Gear Ratio2.00 : 1
Starter SystemElectric
Operation MethodMechanical Control (Optional Tiller Handle Available)
Trim and Tilt MethodPower Trim & Tilt
Digital GaugesOptional
Command Link GaugesOptional
Transom Height (mm [inch])S: 414 [16.3] | 536 [21.1]
Dry Weight (kg)S: 94 | L: 98
