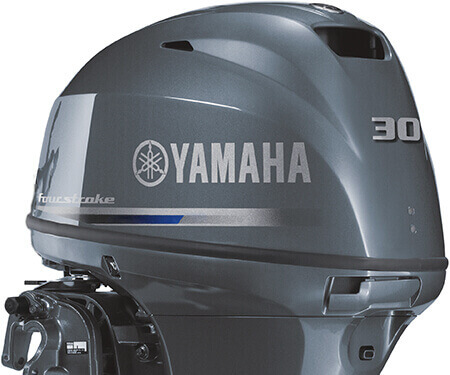

F30
Smooth Operator
If you’re into fishing on your weekends, then you can’t go past the exceptionally fuel-efficient and strong-performing Yamaha F30 Four-Stroke.
Efficient and reliable, the F30 features Yamaha’s Multi-Point Electronic Fuel Injection (EFI) system, matched with a micro-processor controlled system to deliver reliable turnkey hot and cold starting, improved fuel economy, increased power-delivery, lower emissions, and an overall smoother and quieter operation.
Delivering plenty of performance from the compact 747cc 3-cylinder, marine engine, the F30 offers exceptional versatility with both forward or tiller handle control options. The forward control option can be matched with digital gauges, including Yamaha's feature packed Command-Link system. While the optional Multi-Function Tiller Handle comes with trim, shift, and throttle controls, as well as ‘start-in-gear’ protection and warning horn alerts, all integrated into the ergonomic handle.
Technical Specification
Engine Type | 4-Stroke, SOHC In-line 3 |
Bore x Stroke (mm) | 65 x 75 |
Fuel Tank Capacity (l) | |
Displacement (cc) | 747.0 |
Recommended Maximum RPM | 5000-6000 |
Fuel Management | EFI |
Ignition | DC-CDI |
OEDA Emission Rating | 3 |
Lubrication System | Wet-sump |
Alternator Output | 12V - 17A with Rectifier Regulator |
Gear Ratio | 2.00 : 1 |
Starter System | Electric |
Operation Method | Mechanical Control (Optional Tiller Handle Available) |
Trim and Tilt Method | Power Trim & Tilt |
Digital Gauges | Optional |
Command Link Gauges | Optional |
Transom Height (mm [inch]) | L: 536 [21.1] |
Dry Weight (kg) | L: 98 |
