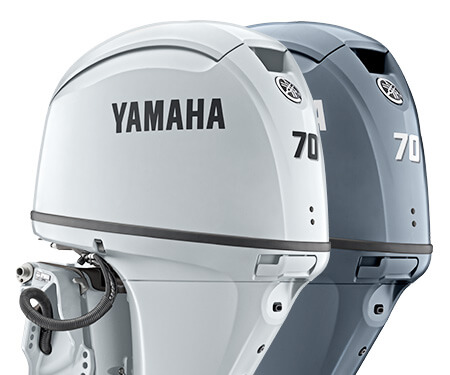

F70
Lightweight Powerhouse
The launch of Yamaha’s F70 changed customers’ expectations of outboards in this category forever.
Beating in the heart of the F70 is a unique four-cylinder, 16-valve design activated by a single overhead camshaft. The 4-valves per cylinder valvetrain has dramatically increased this outboard’s volumetric efficiency, effectively transferring more air and exhaust at a more efficient rate. This makes the F70 more fuel-efficient, promotes a stronger torque band and makes the F70 lighter than all four-stroke and direct injected two-stroke competitors.
The F70’s awesome performance offers huge versatility and makes it the perfect power option for a huge range of mid-sized fishing boats and pleasure craft.
The 70 horsepower is now available in both traditional Yamaha grey and new pearlescent white colour options, in a long shaft only.
Performance Reports
We take out the guess work in buying a new outboard, by rigorously testing our range of engines on Australia’s most popular boating brands. See how your favourite Yamaha powered boat performs for acceleration, fuel economy and top-end speed. View F70 Performance Reports
Technical Specification
Engine Type | 4-Stroke, 16 Valve SOHC In-line 4 Cylinder |
Bore x Stroke (mm) | 65 x 75 |
Fuel Tank Capacity (l) | |
Displacement (cc) | 996.0 |
Recommended Maximum RPM | 5300 - 6300 |
Fuel Management | EFI |
Ignition | TCI |
OEDA Emission Rating | 3 |
Lubrication System | Wet sump |
Alternator Output | 12V-15A with Rectifier Regulator |
Gear Ratio | 2.33:1 |
Starter System | Electric |
Operation Method | Mechanical Control (Optional Tiller Handle Available) |
Trim and Tilt Method | Power Trim & Tilt |
Digital Gauges | Optional |
Command Link Gauges | Optional |
Transom Height (mm [inch]) | L: 534 [21.0] | X: 648 [25.5] |
Dry Weight (kg) | L: 119 | X: 121 |
