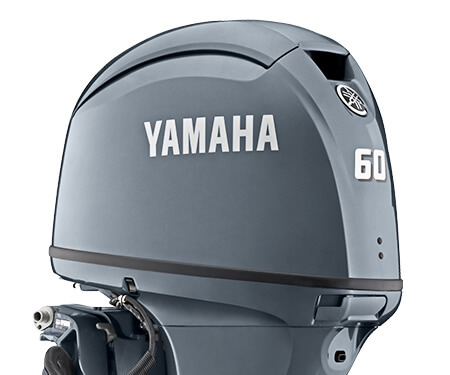

F60
Legendary Power and Performance
The class-leading F60 has been hailed as one of the finest mid-range outboards ever produced. Brilliant fuel economy matched with great torque and power means versatility that is second to none.
Within the F60 is a silky-smooth, 996cc, four-cylinder marine engine, that delivers an excellent power-to-weight ratio and exceptional refinement and fuel-efficiency. Out of the entire 4-cylinder 60 horsepower category, the F60 is the only Japanese Manufactured engine in its class; which boasts the reliability, refinement and quality that Yamaha engines are renowned for.
Utilising Yamaha’s exclusive Multi-Point Fuel Injection System (EFI) and Electronic Control Module (ECM), the F60 delivers impressive power and torque, smooth and comfortable operation, low noise levels and emissions, and the best fuel-economy in its class.
Technical Specification
Engine Type | 4-Stroke, SOHC In-line 4 |
Bore x Stroke (mm) | 65 x 75 |
Fuel Tank Capacity (l) | |
Displacement (cc) | 996.0 |
Recommended Maximum RPM | 5000-6000 |
Fuel Management | EFI |
Ignition | TCI |
OEDA Emission Rating | 3 |
Lubrication System | Wet-sump |
Alternator Output | 12V - 16A with Rectifier Regulator |
Gear Ratio | 1.85 : 1 |
Starter System | Electric |
Operation Method | Mechanical Control (Optional Tiller Handle Available) |
Trim and Tilt Method | Power Trim & Tilt |
Digital Gauges | Optional |
Command Link Gauges | Optional |
Transom Height (mm [inch]) | L: 527 [20.7] |
Dry Weight (kg) | L: 113 |
